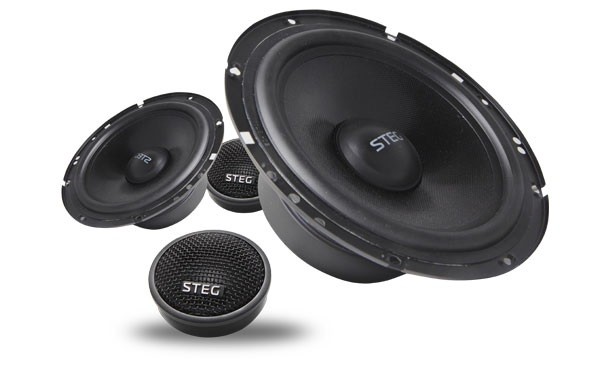

STEG SQ 650 C

Kit 2-Way/Kit/Speakers/Steg/With Tweeter/Diameter 165 mm/Watt 180 W RMS/Nominal 220W/Impedance 4 OHM

NOK1 890,00 inkl. mva.
  • Produktinfo
  • Produktanmeldelser (0)

Speaker Model: SQ 650C-WF

IAPHRAGM MTL: Rubber+Paper

NOMINAL IMPEDANCE: 4.0±15% Ω

DCR IMPEDANCE: 3.6±10% Ω

SENSITIVITY 1W/1M: 87.0±3 dB

FREQUENCY RESPONSE: 60-10K Hz

FREE AIR RESONANCE: 60±20% Hz

VOICE COIL DIAMETER: 25.5 mm

RATED POWER INPUT: 120 W

MAXIMUM POWER INPUT: 160 W

MAGNET WEIGHT(OZ): Ferrite

FERRO FLUID ENHANCED: NO

Qms: 4.09 Qes: 0.65 Qts: 0.56 BL: 4.5TM

Speaker Model:SQ 650C-TW

IAPHRAGM MTL: Silk+AL

NOMINAL IMPEDANCE: 4.0±15% Ω

DCR IMPEDANCE: 3.6±10% Ω

SENSITIVITY 1W/1M: 89.0±3 dB

FREQUENCY RESPONSE: 1800-20K Hz

FREE AIR RESONANCE: 1800±20% Hz

VOICE COIL DIAMETER: 25.4 mm

RATED POWER INPUT: 15 W

MAXIMUM POWER INPUT: 30 W

MAGNET WEIGHT(OZ): NEO

FERRO FLUID ENHANCED: YES

For Technical Specifications Click Here
