Vibe BD QB69-V2

Description

The Vibe BlackDeath 69 is a heavy weight competition 6x9 at the highest level.

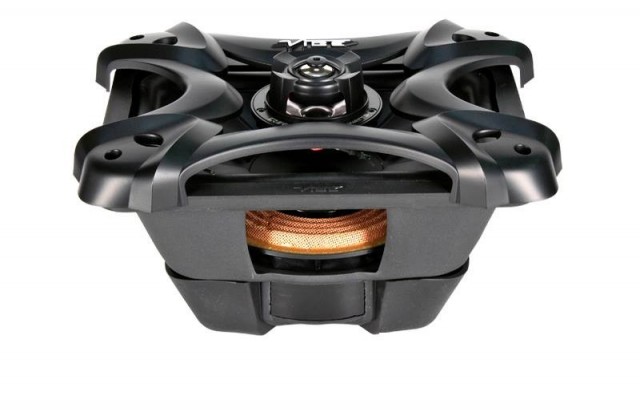

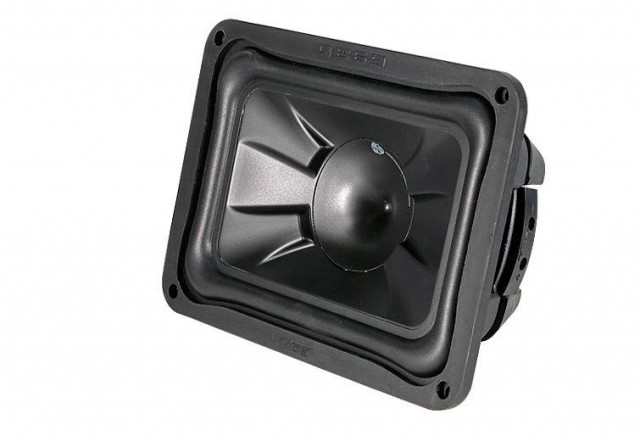

VIBE have produced a unique rectangular shaped 6x9 car speaker. The rectangular IMPP cone has deep forms in its structure, combined with a radically designed surround suspension allowing precise lateral cone movement. A subwoofer motor structure supports the ultra stiff cone and formed suspension deliver exceptional low distortion and clean PowerBass.

Overall size is close to a conventional 6x9 speaker but with the rectangular form providing more than 20% more surface area resulting in greater air movement and increased bass response. A new 3-way tweeter setup allows an ultra extended high frequency response with excellent midrange performance. Controlled and diffused to produce an immaculate sharp response.

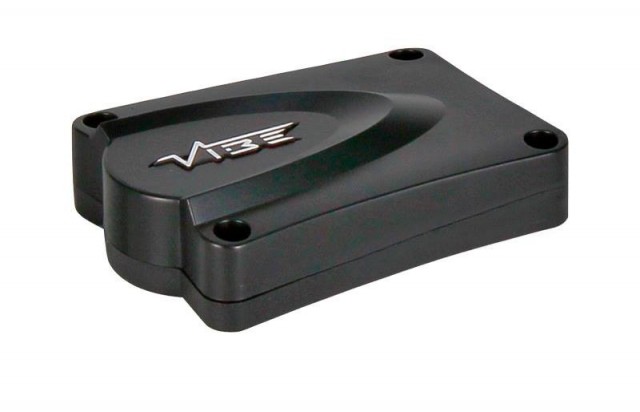

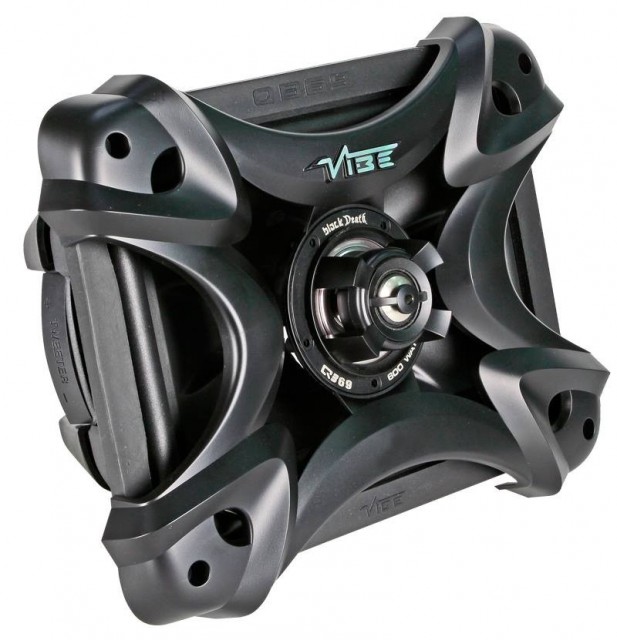

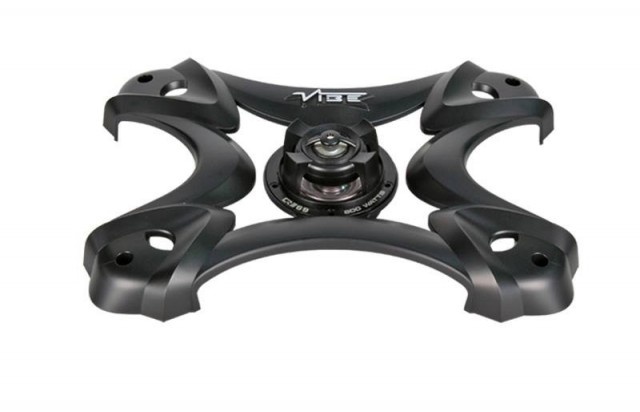

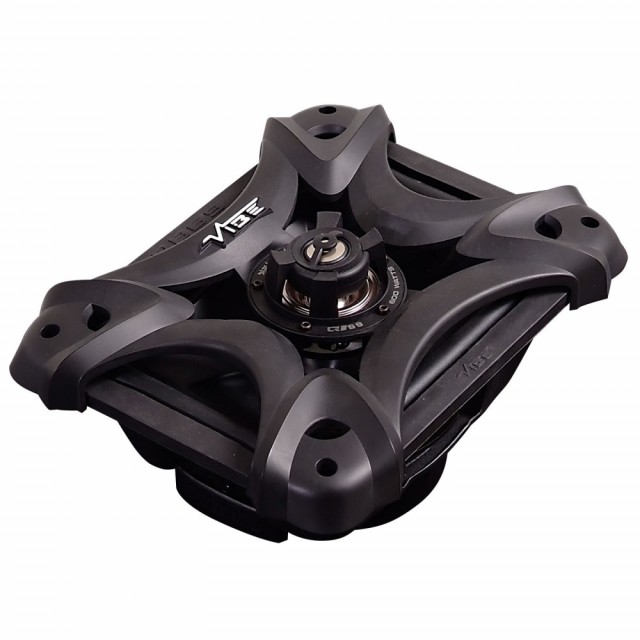

This latest version of the QB69 can now be configured into either coaxial or component style by removing the tweeter assembly from the bass driver and mounting separately.

 Product Highlights

• Type : Component / Coaxial
• Configuration : 3 way
• Speaker Size : 6.25 x 9.29″
• RMS Power : 200 w
• Minimum Input : 100 w RMS
• Peak Power : 600 w
• Sensitivity : 93 db
• Freq. Response : 30 Hz - 25 khz
• Impedance : 4 Ohm
• Mounting Depth : 3.9″
• Mounting Diameter : 6.7″ x 8.7″
• Voice coil diameter : 2.5″
• Magnet material : Ferrite
• Magnet weight : 40 Oz
• Magnet rating : Y25

*Recommended Amplifiers : DeathBox S4
