Vibe CVEN: 4 Channel Amplifier CVENS4-V4
Each CVEN product is manufactured with material specifically selected for their inherent qualities to perform without any constraint of cost.
4 Channel, class AB amplifier
CLASS AB TOPOLOGY: Class AB topology delivers natural and dynamic sound quality.

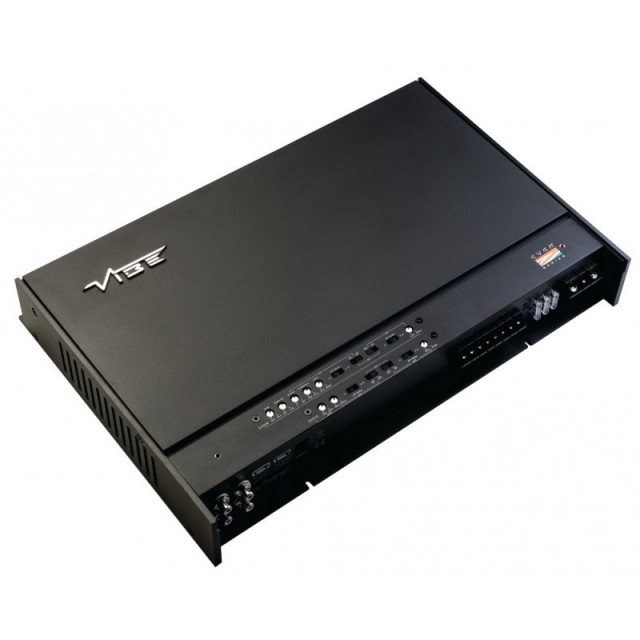

TOP MOUNTED CONTROLS: Top mount controls make setup after installation much more convenient than traditional designs.
WIDEBAND CROSSOVER: Fully configurable HPF / LPF / BPF crossovers with frequency multiplier allows fully active drive of component speaker systems
Product Highlights :
Configuration: 4 channel
Dimensions (H x W x D): 2.4” x 18.5” x 11.4”, (60mm x 470mm x 290mm)
RMS @ 4Ω Stereo (14.4v 1% THD): 2 x 70 + 2 x 130 watts
RMS @ 2Ω Stereo (14.4v 1% THD): 2 x 100 + 2 x 180 watts
RMS @ 1Ω Stereo (14.4v 1% THD): N/A
RMS @ 4Ω Mono (14.4v 1% THD): 2 x 70 + 1 x 360 watts
RMS @ 2Ω Mono (14.4v 1% THD): N/A
RMS @ 1Ω Mono (14.4v 1% THD): N/A
RMS @ 0.5Ω Mono (14.4v 1% THD): N/A
Maximum Power: 1120 watts
Frequency Response: 20Hz - 20kHz
Crossover Type: LP / HP / BP / Flat
Crossover Range: 15Hz - 6kHz
Topology: Class AB
