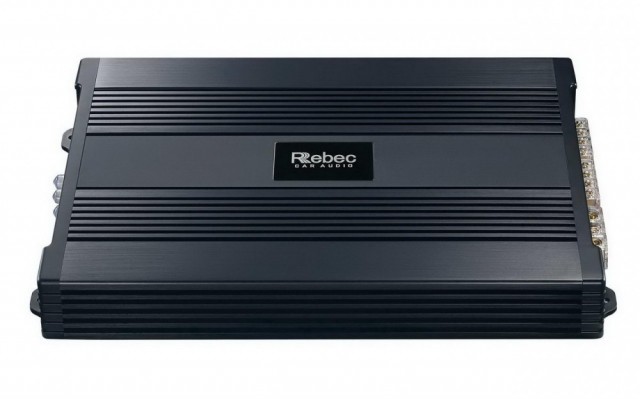

Classic Series Amplifier
Rebec car audio system is designed for perfect sound reproduction. The new generation of classic series amplifiers RA85, RA100, RA120 4-channel power amplifier
optimization the electric circuit design, compared with the original series power amplifier, greater improvement in power and sound quality.
The new generation of classic series amplifiers use field effect electric circuits design. The power amplifier uses Fairchild FQP33N10 field effect tube, has high input impedance,high output, low distortion, and mostly even-wave distortion, the sound density is great and the low frequency dive is deeper, strong sense of music. there have excellent performance in sound field, the sense of multi-level , resolution, and positioning. The PCB board adopts FR4, 94V0, KB double fiberglass board. Copper foil thickness up to 2oz is twice the thickness of ordinary substrate copper foil, Reduce the loss of signal in transmission.
Operating mode: Class AB
Input sensitivity: 0.13-4.5V
Power supply: 10-16V
Frequency range: 10Hz-35KHz
Output power : 120W×4ch
Bridged output power: 420W
Signal to noise ratio: >98dB
Internal fuse: 25Ax3
Dimensions: 369×220×52(mm)
