-PILOT 2ohm STEREO / BRIDGE 4ohm
- SOUND "AUDIOPHILE"
- MANAGED BY INDEPENDENT CIRCUIT PROTECTION
- DOUBLE ADJUSTMENT FREQUENCY X-OVER TECHNOLOGY
- DUAL DIFFERENTIAL INPUT SYSTEM WITH G.R.I.P.S.
- TECHNOLOGY STAGE AUDIOPHILE
- REMOTE CONTROL
- HI LEVEL INPUTS
- AUTO TUR ON (arrival of the audio signal power)
- MADE IN ITALY
Power 4 ohms stereoWatt RMS - 14.4 Volt 100 x 2
Power 2 ohms stereoWatt RMS - 14.4 Volt 195 x 2
Power 4 ohms monoWatt RMS - 14.4 Volt 390 x 1
Power 4 ohms stereoWatt MAX - 14.4 Volt 200 x 2
Power 2 ohms stereoWatt MAX - 14.4 Volt 390 x 2
Power 4 ohms monoWatt MAX - 14.4 Volt 780 x 1
INPUT SENSITIVITY: Volts RMS 0.2 V - 6 V
HIGH Pass 15Hz - 250Hz
LOW Pass 50Hz - 250Hz
BASS BOOST 0 +12 dB
DIMENSIONS: 135 x 52 x 230 mm
WEIGHT: 2.21 Kg
In respect of absolute quality criteria, which develops the idea STseries. Total overall harmony achieved with meticulous care of every detail. Even the smallest detail, is designed and built to best suit its function.
PRECIOUS MATERIALS all-aluminum structure, finely processed and treated. The printed circuit board is constructed with materials that meet military and professional standard rules, reinforced with bars in gilded copper to handle the high currents involved.
High quality and precision, MOSFET selected one by one, solid terminal blocks obtained full that accept large cables and passive components with very low tolerance.
DESIGN shapes drawn by the function, elegant lines and sophisticated. Designed to dissipate the heat quickly
SOUND output stage and preamplifier as a synthesis of the know-how STEG. exclusive circuits as GR.I.P.S. (Which eliminates any external disturbance), Straigth-In (reduced signal path) and the new audiophile driver entirely by discrete components, the heart of Bel Sound STseries.
STDseries, the name of these new electronics. is the commitment made by STEG in achieving designed amplifiers, as well as for the sound, for competitions. The available power, high current and the impressive dynamics are among the features guaranteed by a project that has not spared on anything. The massive use of powerful semiconductors, the breakdown of the power of several transformers in parallel and the use of an extremely effective dissipating system, provide all the energy required to drive the reliability and continuity with each type of load, up to 2 ohm.

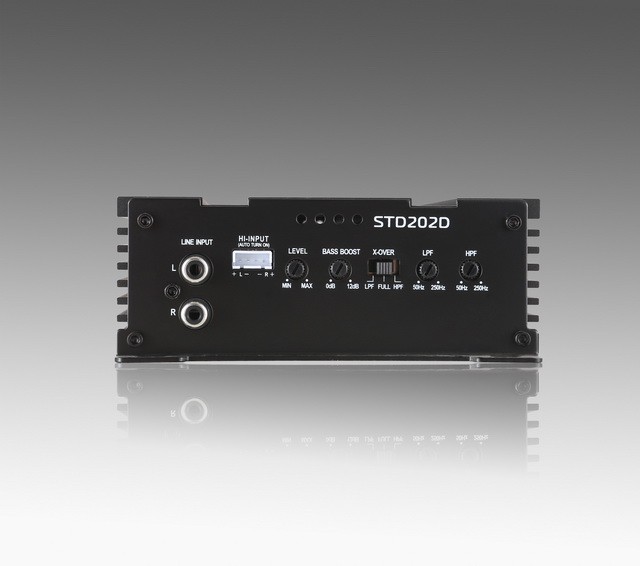

The numerous functions on the input panel are the SMMS system (STEG MULTIWAY MODULAR SYSTEM). Two types of LP and HP filters separate and independent - Configurations High-pass, low-pass, band-pass, Flat - selectable 12dB slope. SMMS allows the creation of sophisticated multi-way systems (3,4,5,6-way and more, depending on the installation needs), avoiding the use of expensive and noisy cross-over external heavily that degrade the sound.
